Tilt-Up Construction Benefits

Tilt-Up concrete construction is not new; it has been in use for well over a century. Since the mid-1940s it has developed into the preferred method of construction for many types of buildings and structures. Nationwide, over 15% of all industrial buildings are Tilt-Up, ranging in size from 5,000 to over 1.5 million square feet. They are typified by their attractiveness, efficiency and longevity.

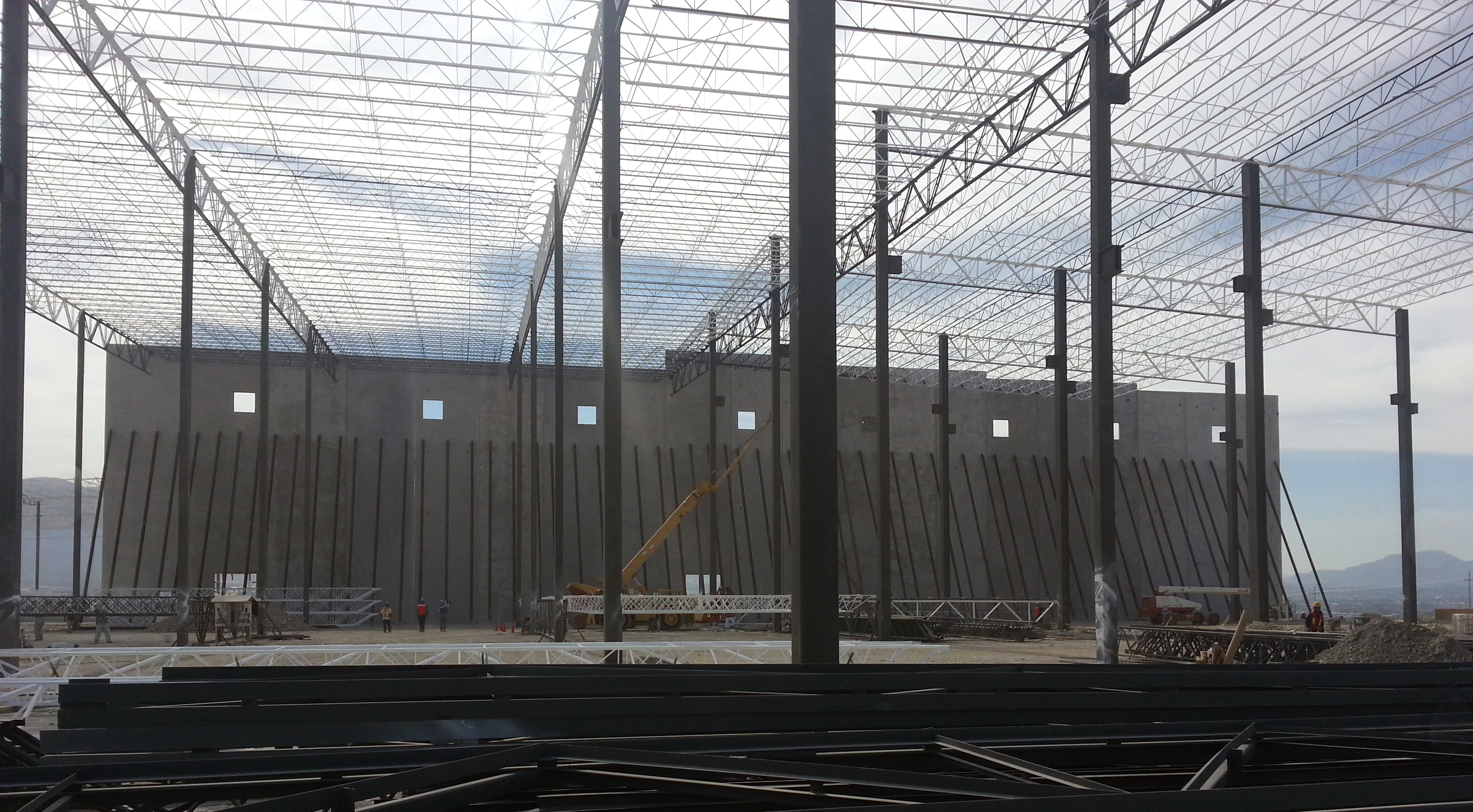

With the tilt-up method, concrete elements (walls, columns, structural supports, etc.) are formed horizontally on a concrete slab; this normally requires the building floor as a building form but may be a temporary concrete casting surface near the building footprint. After the concrete has cured, the elements are "tilted" to the vertical position with a crane and braced into position until the remaining building structural components (roofs, intermediate floors and walls) are secured.

Tilt-up differs from prefabrication, or plant cast construction, in that all elements are constructed on the job site. This eliminates the size limitation imposed by transporting elements from a factory to the project site.

Architectural Innovations

Early tilt-up architecture was very minimalist and boxy. Recent techniques have expanded the range of appearance and shape.

Many finish options are available to the tilt-up contractor, from paints and stains to pigmented concrete, cast-in features like brick and stone to aggressive erosion finishes like sandblasting and acid-etching. Shapes are also features that have become dominant in the tilt-up market, with many panels configured with circular or elliptical openings, panel tops that are in pediment or curved, and facades that are curved or segmented..

Tilt-up Construction ensures Energy Efficiency

Valuable Energy is stored, due to the natural Thermal Mass properties of concrete. Insulated Sandwich Panels can also be provided for Buildings requiring minimal temperature fluctuations, increased R values and a Hardwall interior surface.

Insulation can be applied to either side of the panels or cast as an integral part of the panel between two layers of concrete to create sandwich panels. Concrete has the ability to absorb and store energy and is high mass, which regulates interior temperature (thermal mass) and provides soundproofing and durability. Like all concrete construction, tilt-up buildings are fire-resistant. In addition, wall panels can be designed to sag inward when damaged, which minimizes collapse.
